Fix MagSafe Case Charging in 30 Seconds, UK

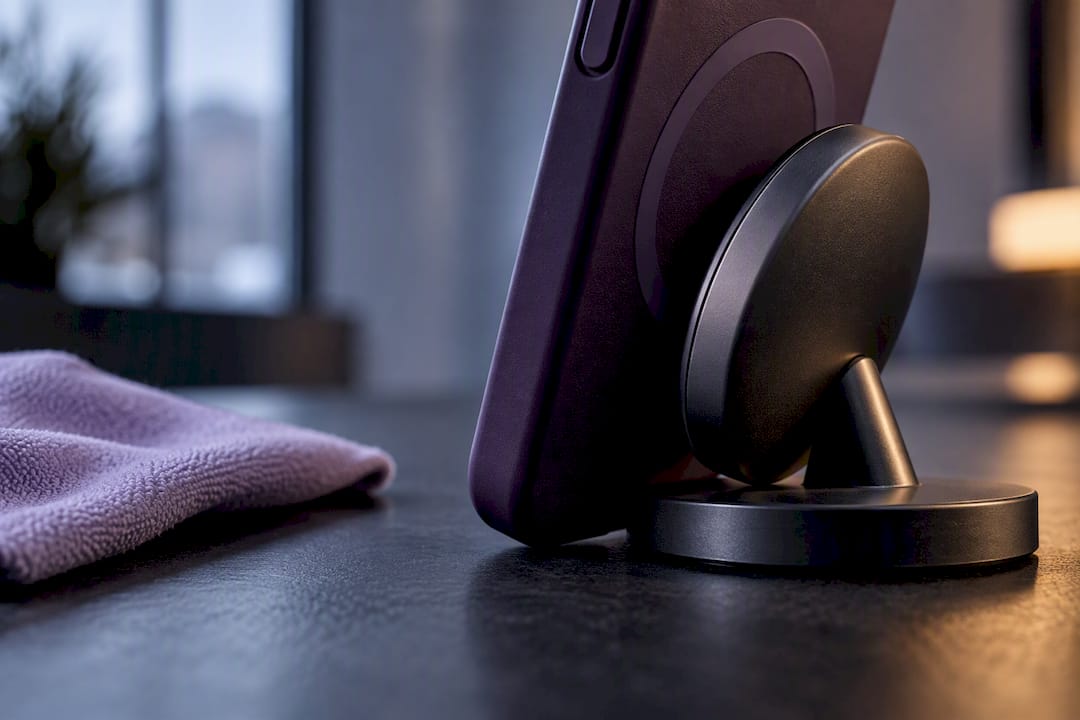

Case aligned with magnetic wireless charger

If your iPhone charges normally once you strip off the case but stalls the moment it’s back on, the case is almost certainly the culprit. Take it off and put the bare iPhone on the same MagSafe charger, same adapter, same outlet. If charging starts, the case is your problem and you skip ahead to the fixes below. If it still fails, the fault sits somewhere in the power chain, not the case.

TL;DR:

  • If your iPhone charges normally without the case but stalls when the case is on, the case is likely obstructing proper magnetic alignment or increasing coil distance.
  • Thick, metal, or improperly magnetized cases can block or weaken wireless charging, especially if they include wallets, retrofitted magnets, or non-certified magnets.
  • Faulty chargers, cables, or outlets are common causes when the bare phone fails to charge across multiple known-good accessories, indicating hardware issues rather than cases.
  • Always perform the bare-phone test first before replacing accessories, as cases are the most frequent and easiest fix for MagSafe charging failures.
  • Using a properly certified MagSafe or Qi2-enabled case that is slim and free of metal ensures the best chance of reliable wireless charging compatibility.
SmartProtectors
smartprotectors.eu
Find Protection That Fits
SmartProtectors helps you find reliable cases, screen protectors and lens protectors for your specific smart device model.
Explore device protection

Table of Contents

Quick checks for a MagSafe not working case problem

Before you pull the case apart or start swapping accessories, run through the basics. Most MagSafe complaints trace back to one of five simple things, and none of them require a screwdriver.

  1. Confirm your iPhone actually supports MagSafe. Every iPhone from the 12 onwards has the internal magnet ring; older models don’t, and no case will fix that. If you’re not sure which model you own, it’s worth double checking before you blame the case at all.
  2. Check you’re not charging by cable at the same time. If your iPhone is plugged into a Lightning or USB-C cable while sitting on the MagSafe puck, it will draw power through the wired connection instead, and you’ll wrongly assume MagSafe has failed. Apple’s own guidance flags this exact scenario as a common false alarm during testing, so disconnect any cable before you test.
  3. Look at your adapter’s wattage. MagSafe needs a proper USB-C power adapter to hit its top speeds, and Apple’s peak delivery figures vary by iPhone model and adapter combination, up to 25W in the right pairing. An old 5W iPad brick will “work” but charge so slowly it feels broken.
  4. Clean everything that touches everything. Wipe the back of the phone, the inside of the case, and the face of the puck. Pocket lint, a stray coin, or a forgotten card sitting in a wallet pocket is enough to block the coil or trip the foreign-object detection that pauses charging automatically.
  5. Get your sequence right. Plug the adapter into the wall first, then place the phone on the puck. If the phone was already sitting on the puck when you plugged in, lift it off, count to three, and set it back down. This small ritual reportedly restores full-power charging when the connection has gone stale.

Statistic callout: Apple’s official troubleshooting page states the charger should sit “face up on a flat surface” and stay clear of metal objects and foreign material for reliable charging. That single instruction rules out a surprising number of “faulty” MagSafe complaints that are really just a coin under the puck.

Once charging starts, watch it for a minute. If it begins then drops out, note whether your phone felt warm. MagSafe deliberately throttles or pauses when the iPhone runs hot, and a thick case trapping heat is often the reason charging looks intermittent rather than dead.

How do you diagnose a MagSafe charging problem step by step?

Guessing wastes money. The fastest way to find the actual fault is controlled substitution: change exactly one variable at a time and note what happens. Apple’s troubleshooting approach is built on this same principle of isolating each component in turn, and it works just as well for a home diagnosis as it does for a Genius Bar appointment.

  1. Bare phone versus cased phone, same charger, same outlet. This is the test you should already have run from the opening step. If the bare iPhone charges and the cased one doesn’t, the case is your variable. Move straight to the case diagnostics below.
  2. If the bare phone also fails, swap the adapter and cable. Try a different USB-C adapter of similar or higher wattage, and a different cable if you’re using one with the MagSafe puck. Faulty cables are a common, cheap, and overlooked cause of intermittent charging.
  3. Try another outlet, and if possible, another puck. Wall sockets fail more often than people expect, particularly on extension leads or older wiring. If a friend or family member has a MagSafe charger, borrow it for thirty seconds; that alone can confirm whether your own puck is dying.
  4. Test with a different MagSafe-compatible case, even briefly. Shops, friends, or a case you already own for another phone can serve as a control. If your iPhone charges fine under a different case, you’ve confirmed the fault sits in the original case’s build, not your phone’s hardware.
  5. Log what you see. Time to start charging, whether the charging symbol appears, and whether the phone feels hot are all useful data points, particularly if you end up speaking to Apple Support or a repair centre.

Pro Tip: Keep a MagSafe test kit of one spare adapter and one spare cable somewhere accessible. It turns a twenty-minute diagnostic headache into a two-minute confirmation, and you’ll use it again the next time a case or charger goes wrong.

If the bare iPhone fails on more than one known-good charger, outlet, and cable, stop testing cases altogether. That pattern points to the phone’s own charging hardware, and it’s time to book an appointment with Apple Support or an authorised service provider rather than buying yet another accessory.

What case problems stop MagSafe from charging?

A case doesn’t need to be broken to block MagSafe. It just needs to interfere with one of three things: the magnetic alignment, the physical distance between coil and puck, or the space where a foreign object can sit.

  • Thickness and material. Thick TPU, dense silicone, or a multilayer wallet design can push the coil too far from the puck for efficient power transfer, even when the magnets line up perfectly. Metal backing plates or metal-reinforced corners are worse, because metal can distort the magnetic field entirely rather than just adding distance.
  • Magnetic ring and coil offset. Not every case sold as “MagSafe compatible” has its magnets positioned correctly. Real-world reports on Apple Support Communities show cases labelled MagSafe still failing because the internal ring sits a few millimetres off centre, which is enough to break the magnetic snap that keeps the puck aligned with the coil.
  • Wallet-style pockets. Empty the card slot before you charge. A card left in a rear wallet pocket sits directly between the coil and the puck, and Apple specifically warns that credit cards and RFID items risk damage from the charger’s magnetic field, on top of blocking the connection outright.
  • Attachments and retrofit magnets. Pop-style grips, metal plates for car mounts, and adhesive magnetic rings sold as MagSafe “boosters” are a frequent, avoidable cause of failure. Adding a metal disc to make a non-MagSafe case magnetic doesn’t recreate Apple’s precisely spaced magnet array; it just adds another obstruction and can shift the effective coil position, according to Apple’s own charging guidance.

Statistic callout: The alignment standard behind all of this is called Qi2, and its Magnetic Power Profile formalises exactly the kind of magnet-and-coil geometry Apple pioneered with MagSafe. As WIRED’s explainer notes, certified magnetic arrays allow noticeably better alignment and faster charging than a case that’s merely “magnetic” without proper certification.

Before you write the case off entirely, try the free fixes first: empty every pocket, peel off any adhesive attachments sitting near the centre back panel, and reseat the phone inside the case in case it’s not clicked in fully. If you want to understand how case design interacts with wireless charging in more depth, our compatibility guide to wireless charging with a case walks through the mechanics in plain terms.

When should you replace the case or the charger?

Diagnostic results, not guesswork, should decide what you buy next. Here’s how to read your test outcomes.

Replace the charger when:

  • The bare iPhone fails to charge on your original puck but succeeds on a different one.
  • The cable or puck shows visible fraying, bent pins, or scorch marks.
  • Charging works but never exceeds a trickle, even with a suitable 20W-or-greater adapter as Apple recommends for MagSafe accessories.
  • The bare iPhone fails across multiple known-good chargers and outlets. At that point, stop buying accessories and contact Apple Support instead, since the fault likely sits in the phone itself.

Replace the case when:

  • The cased phone consistently fails while the bare phone charges fine, even with pockets empty and attachments removed.
  • The case is a thick wallet or rugged design and a thinner alternative solves the problem in testing.
  • It uses a retrofitted magnetic sticker rather than a built-in, properly spaced magnet array.

When you do buy a replacement, be specific about what you’re looking for. A buying checklist worth keeping on your phone while you shop:

  • Explicit “MagSafe compatible” or “Qi2-ready” wording on the product page, not vague “magnetic” claims.
  • A stated thickness specification, ideally under the range that keeps coil distance minimal.
  • No embedded metal plates, especially around the centre back panel.
  • A clear compatibility statement naming your exact iPhone model.

For the charger side, stick to a reputable USB-C PD adapter at the wattage Apple recommends for your model, paired with a decent-quality USB-C cable rather than the cheapest one in a supermarket checkout bin. Our guide to identifying your exact phone model is a useful first stop if you’re not certain which iPhone generation, and therefore which wattage ceiling, you’re shopping for.

How can you prevent future MagSafe charging problems?

A few small habits stop most MagSafe issues before they start.

  • Empty your wallet case before every charge. Cards left between the phone and the charger risk damage to magnetic strips and RFID chips, and they block the coil regardless.
  • Plug the adapter into the wall first, then place the phone. This sequence consistently delivers full-rate charging rather than a slow trickle.
  • Wipe the charging surfaces weekly. Dust and pocket debris accumulate faster than people expect, particularly if you carry your phone loose in a bag.
  • Keep adhesives and add-on magnets away from the centre back panel. If you want a pop grip or car mount magnet, look for one designed to sit around the MagSafe ring rather than over it.
  • Match the case to the use case. A thin, MagSafe-compatible case suits daily wireless charging at your desk or bedside; save bulkier wallet or rugged cases for days out when you won’t be charging wirelessly anyway.

Pro Tip: If your iPhone runs warm during long charging sessions, a case that also traps heat will slow charging further, since MagSafe throttles output as temperature rises. A slimmer case in summer months, or during heavy use, can make a genuine difference to charging speed.

How SmartProtectors approaches MagSafe-friendly case design

Most MagSafe failures trace back to two things: magnets placed slightly wrong, and cases too thick or too metal-heavy for reliable coil alignment. This is a common consideration when sourcing MagSafe-compatible cases, designed with correctly spaced magnet arrays and case thickness that keeps the coil close enough to the puck for full-speed charging.

Different readers land in different spots after running the diagnostics above, and the fix usually depends on what your testing revealed:

  • If your bare phone charges but a bulky or metal-backed case doesn’t, a slimmer, properly aligned case solves it without touching your charger at all.
  • If you want rugged protection without sacrificing MagSafe alignment, a metal-frame case built with a dedicated magnetic bracket keeps both intact.
  • If you’re testing across devices, including Android handsets with wallet-style needs, a built-in wireless charging case with card slots covers that use case too.

Whatever you choose, run the controlled substitution test from earlier before you buy anything…

The one thing most MagSafe advice gets backwards

Most troubleshooting guides tell you to check the charger, the adapter, and the outlet before ever suspecting the case. That order is backwards for most readers. If your case is a thick wallet design, has an aftermarket magnetic sticker, or was bought cheaply without any MagSafe certification, it’s the single most likely point of failure, and testing it first saves you from needlessly replacing a perfectly good charger.

The conventional advice also underplays how much certification language actually matters. “Magnetic” is not the same claim as “MagSafe compatible” or “Qi2-ready”, and the gap between those phrases is exactly where most of the failures in this article originate. A case that merely sticks to your iPhone isn’t the same as one built to Apple’s magnet and coil spacing.

If you take one thing from this guide, make it the bare-phone test. It takes thirty seconds, costs nothing, and tells you immediately whether you’re about to waste money on the wrong fix.

— Dian

Get MagSafe working properly again

Cases that look MagSafe compatible on the box can still fail to deliver reliable charging once they’re on your phone. Cases designed with genuinely spaced magnet arrays and sensible thickness help avoid vague “magnetic” marketing claims.

Metal Frame Phone Case with Magnetic Bracket for iPhone 17 Pro/Pro Max/Air – Durable Protective Cover

Run the bare-phone test from earlier before you buy anything; it takes thirty seconds and tells you whether you need a new case at all. If the case is confirmed as your problem, the metal-frame case with a magnetic bracket suits anyone wanting rugged protection without losing alignment, while the magnetic suction soft case with anti-frost protection suits readers who want a slimmer, softer everyday case for iPhone 16 models. If you’re testing across devices, the wallet case with built-in wireless charging covers Galaxy handsets with card storage needs. Browse the full cases collection, or pair your new case with a screen protector and camera lens protector while you’re there, and check compatibility notes on the product page before ordering; all purchases carry a 30-day return window if the fit isn’t right.

Where to check the official guidance

The advice in this guide draws directly on Apple’s own documentation, plus one independent explainer on the wireless charging standard behind MagSafe.

If you’re comparing thermal behaviour during long charging sessions, Hauntgears’ picks for thermal cameras compatible with iPhone offer a practical way to actually see where heat builds up around a case.

Sources

FAQ

Why has Apple discontinued the original MagSafe charger accessories?

Apple hasn’t discontinued MagSafe as a technology; it remains standard on every iPhone from the 12 onwards and now overlaps with the Qi2 standard that other manufacturers have adopted. Some older individual MagSafe accessories have been phased out as newer models launched, but MagSafe charging itself is very much active.

How do I reset a MagSafe battery pack?

Press and hold the battery pack against the back of your iPhone and check for the charging symbol; if nothing appears, disconnect it fully for a short time before reattaching. If it still won’t charge, run the same bare-phone and adapter substitution tests outlined earlier in this guide, since a battery pack fails for the same alignment and power-chain reasons a puck does.

Does MagSafe get weaker over time?

MagSafe’s magnets themselves don’t meaningfully weaken with normal use, but charging speed can appear to drop due to a worn cable, an ageing adapter, or a case that’s shifted position after months of use. If charging feels slower than it used to, work through the adapter and cable swap steps in the controlled troubleshooting section before assuming the magnets have degraded.

How can I check if MagSafe is actually working?

Remove any case, disconnect any wired charging cable, plug your adapter into the wall first, then place the bare iPhone on the puck and watch for the charging symbol. If it appears and charging holds steady for a minute without dropping out, Apple’s own guidance confirms MagSafe itself is functioning correctly and any remaining issue lies with your case.

Can a MagSafe-labelled case still block charging?

Yes. Real-world reports on Apple Support Communities confirm cases marketed as MagSafe compatible can still misalign the internal magnet ring or sit too thick for reliable power transfer. Checking for explicit Qi2 or MagSafe certification, rather than vague “magnetic” wording, is the most reliable way to avoid this before you buy.
