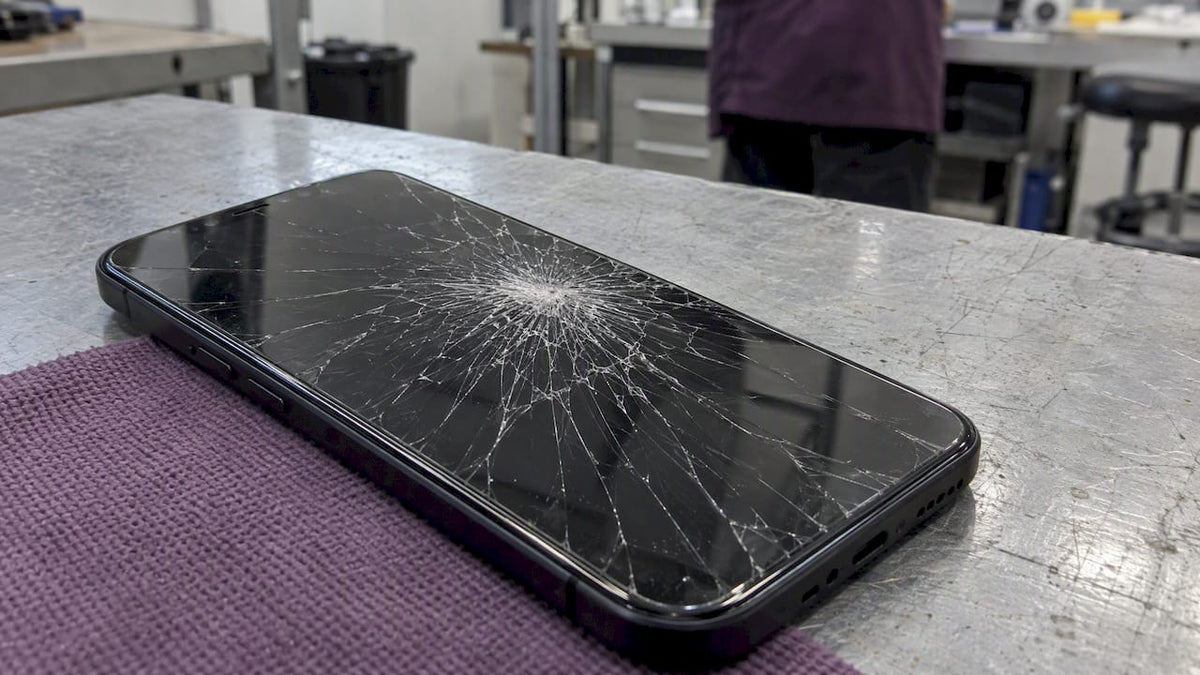

Cracked screen protector remains bonded after impact

Modern screen protectors combine a hard cover layer (glass or polymer film), an adhesive or OCA bonding layer, and one or more interlayers or coatings, and together these layers determine scratch resistance, impact energy dispersion and touch response. Engineered interlayers such as TPU, PVB-type films and D3O improve how a protector behaves after a hit, compared with a single thick sheet of glass on its own.

TL;DR:

  • For drop protection, choose tempered glass or a hybrid with a named impact interlayer; D3O reports up to 2.8 times more shatter resistance in its own testing.
  • Prioritize hard glass and a scratch resistant coating for scratches, matte surfaces for glare, oleophobic coatings for fingerprints, and TPU for curved screen edge coverage.
  • Check listed materials, adhesive type, thickness, exact device model, and fingerprint sensor compatibility; thick or poorly matched layers can block sensor readings.
  • Avoid stacking protectors because added adhesive can reduce clarity and disrupt touch or fingerprint sensors; one well matched protector avoids those trade offs.
SmartProtectors
Find the Right Screen Protection
Explore screen protectors and other device protection, with options for specific brands and models that can be hard to find.
Browse device protection

Table of Contents

Anatomy of a layered screen protector: each layer and its job

Every screen protector is a small stack of materials, each doing one specific job. The front cover takes the hit first: tempered aluminosilicate glass resists scratches well and feels closer to the phone’s own screen, while PET or TPU films are thinner, flex more, and tend to absorb light impacts rather than crack outright.

Beneath that sits the bonding layer. Optically clear adhesive (OCA) is what keeps the protector flush against the screen, and its thickness and quality affect both how sharp the display looks and how accurately the touchscreen reads your finger. Poor bonding shows up as haze, bubbling or a slight lag when you type.

Many protectors also build in a dedicated interlayer whose job is purely mechanical: to stretch, flex or partially delaminate on impact so the energy spreads out instead of concentrating at one point. This is where materials like D3O or TPU films earn their place, and where the behaviour of the whole stack starts to differ sharply from a single sheet of glass.

Finally, surface coatings finish the job. Oleophobic layers resist fingerprints and smudges, anti-glare or matte treatments cut reflections, and anti-scratch topcoats slow down surface wear, though all three degrade gradually with cleaning and use.

  • Front cover: glass for hardness, PET or TPU for flexibility and impact absorption.
  • Adhesive (OCA): bonds the stack and governs optical clarity and touch accuracy.
  • Impact interlayer: stretches or delaminates to spread out impact energy.
  • Surface coating: oleophobic, anti-glare or anti-scratch, with a finite working life.

Thickness typically runs from under 100 micrometres for slim films to around half a millimetre for tempered glass, and that range is a rough guide to feel rather than a strict rule: a thicker stack isn’t automatically tougher if the layers inside it are poorly matched.

How layered construction changes protection: mechanics in plain English

A single sheet of glass protects mainly by being hard. A layered protector protects by managing energy, and that distinction explains most of what you see when you drop your phone.

Academic work on laminated glass systems has found that most of the energy dissipation after a crack occurs not in the glass itself but in the stretching and delamination of the polymer interlayer behind it, and that the type of interlayer and how well it bonds to the glass strongly affects how the whole assembly performs under impact, as detailed in research on adhesion and energy dissipation in laminated glass. In practice, this means two protectors with identical glass can behave very differently depending on what sits underneath it.

Glass and layered protector impact comparison

Impact speed and temperature change how these interlayers respond, since polymers stiffen or soften depending on conditions, which is one reason a protector that survives a slow desk-edge slip might crack from a sharper fall at a different angle.

The visible result is familiar to anyone who has cracked a protector: a spiderweb pattern that stays largely in place, held together by the interlayer, rather than the glass shattering into loose shards. That retained structure is often what keeps the touchscreen usable after a drop, rather than leaving a hole or dead zone.

Engineered impact layers can make a measurable difference here. D3O’s own testing of its ScreenBallistics film claims up to 2.8 times more shatter resistance when the layer is integrated into a film, glass or hybrid build, according to the D3O ScreenBallistics data sheet. That is a manufacturer’s own figure rather than an independent benchmark, but it illustrates why the interlayer, not just the cover glass, often decides whether a crack stays cosmetic or takes the screen with it.

Common protector constructions and materials you will encounter

Product pages describe layered builds in different ways, and knowing what sits behind the marketing language helps you compare like with like.

  1. Tempered glass stacks pair a hardened glass front with an OCA bonding layer and a surface coating, which is why they feel rigid, stay optically clear, and are a popular choice when scratch resistance matters most. Our own guide to choosing tempered glass covers thickness and coating differences in more depth.
  2. Multi-layer PET films, including anti-glare matte variants marketed as “explosion-proof,” stack several thin polymer sheets together. Academic work on architectured laminated systems shows that stacking flexible layers like this trades some stiffness for the ability to spread shear across the whole sheet, which absorbs energy differently to a single rigid pane, as described in research on laminated glass architecture.
  3. TPU and hydrogel constructions are flexible stacks with a self-healing top layer that can smooth over fine scratches, bonded with OCA, and they typically wrap the screen edges more fully than rigid glass. Our self-healing screen protector comparison explains how that top layer recovers over time.
  4. Hybrid designs add a dedicated impact polymer or a D3O-type layer behind a glass front, aiming to combine glass-like clarity with better post-impact behaviour.
  5. Surface coatings wear down with repeated cleaning regardless of what sits underneath, so a coating described as “long-lasting” is still a consumable part of the stack rather than a permanent one.

How to choose a screen protector based on its layers and your device use

Start with how you actually use your phone. Someone who drops their phone often needs different layers to someone who mostly worries about keys and coins scratching the surface in a bag.

  • If drop protection is your main concern, look for a tempered glass or hybrid build with a named impact interlayer rather than glass alone.
  • If scratch resistance matters most, prioritise a hard glass front and check whether the coating is described as anti-scratch rather than just anti-glare.
  • If you dislike glare or fingerprints, a matte or oleophobic-coated film suits daily handling better than plain glass.
  • If your phone has an in-screen fingerprint sensor, confirm the protector is listed as sensor-compatible, since thick or poorly matched layers can block the reading.

Check the product listing for the materials named (glass type, PET, TPU, OCA), the coating description and the stated thickness before buying, since vague listings often mean a generic stack. Our broader guide to types of screen protectors walks through matching these details to your device.

Stacking two protectors on top of each other usually causes more problems than it solves: extra OCA layers reduce clarity, add thickness that confuses touch sensors, and rarely add enough protection to justify the trade-off.

Pro tip: Check the product page for the exact device model and sensor compatibility, and if your device isn’t listed, request sourcing for a matching layered protector.

Publisher evidence: SmartProtectors examples of layered designs

  • The Spigen GLAS.tR EZ Fit Sensor Protected Screen Protector for iPhone 17 Series (2-Pack) pairs tempered glass with sensor-safe construction.
  • The anti-glare matte PET film for iPhone 15 Pro Max / 15 Plus and the matching film for iPhone 15 / 15 Pro show multi-layer PET stacks built for glare reduction. We carry a full screen protector collection and add rare models on request.

Author perspective: when layers matter most

Pick laminated tempered glass when drops worry you most, multi-layer or matte PET when glare and fingerprints bother you daily, and TPU when edge coverage matters on a curved screen. For most everyday smartphone owners, a tempered glass and OCA combination with a named impact interlayer gives the best balance without overthinking the spec sheet.

— Dian

How SmartProtectors can help

We stock the layered constructions covered above, from tempered glass to matte PET film, across our screen protector collection, alongside camera lens protectors and cases built from the same layered thinking.

Spigen GLAS.tR EZ Fit Sensor Protected Screen Protector for iPhone 17 Series (2-Pack)

  • Can’t find your exact model? Submit a request for sourcing and addition to the catalogue.
  • Orders include 30-day returns and customer support if something isn’t right.

FAQ

What is a 5D screen protector?

“5D” is a marketing term describing the edge shape and curved coverage of a layered protector, not a standardised material specification. Retailers use terms like “3D” or “5D” to describe how the layers wrap the screen edges rather than any fixed measure of toughness.

Does the quality of a screen protector matter?

Yes, because the materials and bonding inside the layers directly affect scratch resistance, impact behaviour and touch accuracy. A well-built stack with named glass, OCA and coating types will perform far more consistently than a generic unlabelled film.

Can I layer screen protectors?

Stacking two protectors is possible but usually counterproductive, since extra adhesive layers reduce optical clarity and can interfere with touch or fingerprint sensors. A single well-chosen layered protector almost always performs better than two stacked together.

What’s the difference between a screen protector and a privacy screen?

A standard screen protector focuses its layers on scratch and impact protection while keeping the display as clear as possible. A privacy screen adds a microlouvre film layer that narrows the viewing angle, trading some brightness and clarity for limiting who can see your screen from the side.
